xb5

CIErlang VersionsLatest versionAPI referenceLast commit

xb5 is an Erlang library providing B-tree (order 5) alternatives to OTP's gb_trees and gb_sets.

Benchmarks show 1.2–2.5× faster execution and equal or lower heap usage for most operations.

It provides three modules:

Installation

Available on Hex · API docs

rebar.config:

{deps, [
    % [...]
    {xb5, "~> 1.0"}
]}

your_application.app.src:

{applications, [
    kernel,
    stdlib,
    % [...]
    xb5
]}

For Elixir, xb5_elixir provides an idiomatic wrapper.

Usage

xb5_bag

An ordered multiset, allowing multiple occurrences of the same value. Supports order-statistic operations such as percentile/3 and percentile_bracket/3.

push/2 always inserts a new copy; add/2 is idempotent.

> B0 = xb5_bag:new().
> B1 = xb5_bag:push(x, B0).
> B2 = xb5_bag:push(x, B1).
> xb5_bag:size(B2).
2
> xb5_bag:count(x, B2).
2
> xb5_bag:to_list(xb5_bag:add(x, B2)).
[x, x]

Order statistics on numerical data:

> L = xb5_bag:from_list([12, 14, 14, 15, 15, 18, 20, 25, 30, 100]).
> xb5_bag:count(15, L).
2
> xb5_bag:nth(1, L).
12
> xb5_bag:nth(5, L).
15
> xb5_bag:nth(10, L).
100
> xb5_bag:percentile_bracket(0.0, L).
{exact, 12}
> xb5_bag:percentile_bracket(0.5, L).
{between, 15, 18, 0.5}
> xb5_bag:percentile(0.5, L).
{value, 16.5}
> xb5_bag:percentile(0.75, L).
{value, 23.75}

percentile_bracket/2 returns {exact, X} when the percentile falls exactly on an element, or {between, Low, High, T} when between two — where T is the linear interpolation weight. The default method is inclusive (equivalent to Excel PERCENTILE.INC); exclusive and nearest_rank are also available via percentile_bracket/3. percentile/2 performs the interpolation and returns {value, Result}.

xb5_sets

Ordered set, drop-in alternative to gb_sets.

> S = xb5_sets:from_list([3, 1, 2, 1]).
> xb5_sets:to_list(S).
[1, 2, 3]
> xb5_sets:is_member(2, S).
true
> xb5_sets:smallest(S).
1
> xb5_sets:largest(S).
3
> xb5_sets:smaller(2, S).
{found, 1}
> xb5_sets:larger(2, S).
{found, 3}
> A = xb5_sets:from_list([1, 2, 3, 4, 5]).
> B = xb5_sets:from_list([3, 4, 5, 6, 7]).
> xb5_sets:to_list(xb5_sets:union(A, B)).
[1, 2, 3, 4, 5, 6, 7]
> xb5_sets:to_list(xb5_sets:difference(A, B)).
[1, 2]
> xb5_sets:to_list(xb5_sets:intersection(A, B)).
[3, 4, 5]

xb5_trees

Ordered key-value store, drop-in alternative to gb_trees.

> T = xb5_trees:from_list([{a, 1}, {b, 2}, {c, 3}]).
> xb5_trees:get(a, T).
1
> xb5_trees:lookup(d, T).
none
> xb5_trees:smallest(T).
{a, 1}
> xb5_trees:largest(T).
{c, 3}
> xb5_trees:keys(xb5_trees:insert(d, 4, T)).
[a, b, c, d]
> xb5_trees:smaller(c, T).
{b, 2}
> xb5_trees:larger(b, T).
{c, 3}

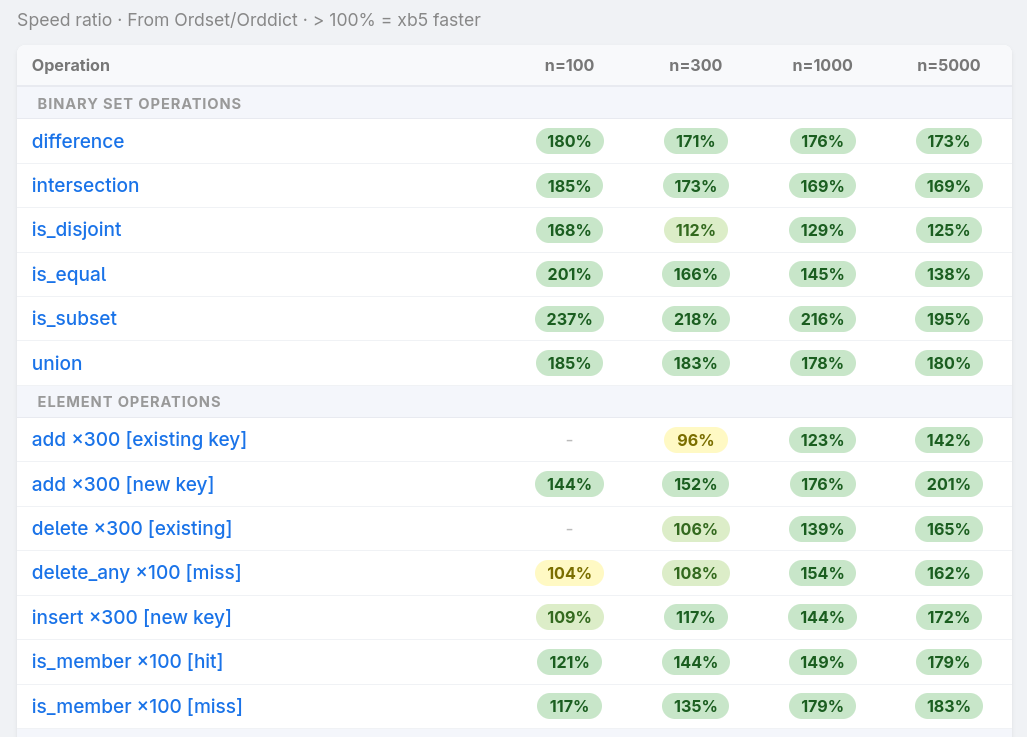

Benchmarks

Benchmarks compare all three modules against gb_sets/gb_trees across 50+ operations and collection sizes up to 15,000 elements, measuring both runtime and heap allocation. All tests used small integers (immediate values) as keys. Each module is tested under three build scenarios: bulk construction from a sorted input, sequential single-key insertion, and random insertion order. Tests ran on OTP 28 with JIT enabled on two machines: AMD Ryzen 7 5700G and Intel i5-3550.

In general, measured performance gains grew with collection size.

xb5_sets vs gb_sets:

xb5_trees vs gb_trees:

xb5_bag vs gb_sets:

Technical Details

Key density

In a B-tree of order 5, each non-root node holds between 2 and 4 keys. The average number of keys per node — the key density — turns out to be an important factor for performance.

Early benchmarks showed that:

Much of xb5's design follows from keeping key density close to that sweet spot.

Measured key densities for 1000-element sets:

Build type Key density
Bulk construction or sequential ops ~3.0
Random insertions ~2.9
After heavy random deletion ~2.6
Adversarial deletion (every 5th element) ~2.4

Insertion: spilling before splitting

In a textbook B-tree, when a node overflows (5 keys in an order-5 tree), it splits into two nodes of 2 keys each, pushing the median up. Sequential insertions cause frequent splits, leaving most nodes half full — a key density of ~2.

xb5 adds a step before splitting: if the overflowing node's left sibling has only 2 keys, the excess key is spilled into that sibling instead. If the node has no left sibling (i.e., it is the leftmost child), the right sibling is checked. A split only happens when no adjacent sibling can absorb the extra key (i.e., it already has 3 or more keys). This keeps nodes fuller and key density close to 3.

Deletion: reactive rebalancing

Textbook B-tree deletion uses a proactive strategy: before descending into a child, ensure it has more than the minimum number of keys by rotating from a sibling or merging. This guarantees a single top-down pass with no backtracking, which makes sense when nodes are mutable and pre-allocated.

In the BEAM, however, all traversed tuples are reallocated on the way back up regardless — there is no mutation to avoid. xb5 therefore uses a reactive approach: it descends freely, allowing a child node to temporarily hold only 1 key after a deletion, and then checks on the way back up whether a rotation or merge is needed. This was measured to perform better, as the proactive key movements are often unnecessary and amount to wasted reallocations.

Additionally, when rebalancing after a deletion, only the left sibling is checked for a possible rotation (unless the child is the leftmost, in which case the right sibling is checked). This leads to more frequent merges compared to the textbook approach of checking both siblings — which both helps key density and reduces allocations (a merge requires only 1 tuple allocation, while a rotation requires 3).

Trade-off: code verbosity

The node modules (xb5_sets_node, xb5_trees_node, xb5_bag_node) are large and repetitive. This is a deliberate trade-off.

Nodes are not generic tuples accessed via element/setelement — each node size has its own explicit tuple layout, packed and unpacked through macros:

-define(LEAF2(E1, E2), {E1, E2}).
-define(LEAF3(E1, E2, E3), {E1, E2, E3}).
-define(LEAF4(E1, E2, E3, E4), {leaf4, E1, E2, E3, E4}).
-define(INTERNAL2(E1, E2, C1, C2, C3), {internal2, E1, E2, C1, C2, C3}).
-define(INTERNAL3(E1, E2, E3, C1, C2, C3, C4), {E1, E2, E3, C1, C2, C3, C4}).
-define(INTERNAL4(E1, E2, E3, E4, C1, C2, C3, C4, C5), {E1, E2, E3, E4, C1, C2, C3, C4, C5}).

This explicit pattern matching and tuple construction was necessary to achieve meaningful performance benefits over gb_trees/gb_sets.

The code also relies heavily on inlining (-compile({inline, [...]})) to keep things both readable and fast: each operation branches across multiple node sizes, and dispatching the contents of a node through function calls would mean passing many arguments. Inlining allows separation of concerns without paying for the dispatch.

The cost is visible in compiled module sizes — the node modules are significantly larger than their stdlib counterparts:

Module .beam size
gb_sets 34K
gb_trees 22K
xb5_sets_node 96K
xb5_trees_node 136K
xb5_bag_node 128K
