TermUI

A direct-mode Terminal UI framework for Elixir/BEAM, inspired by BubbleTea (Go) and Ratatui (Rust).

TermUI leverages BEAM's unique strengths—fault tolerance, actor model, hot code reloading—to build robust terminal applications using The Elm Architecture.

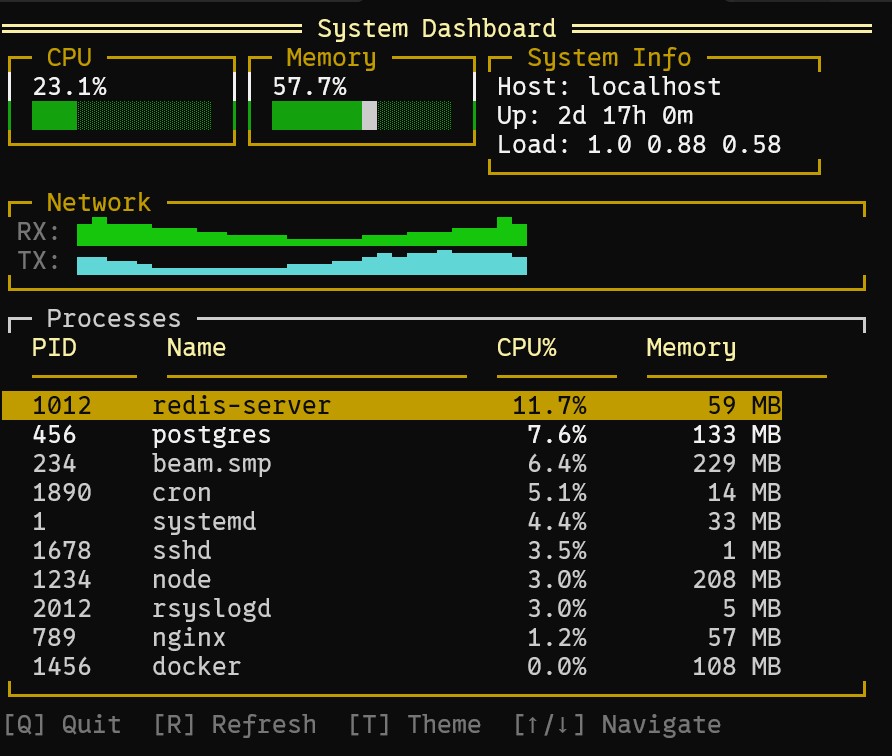

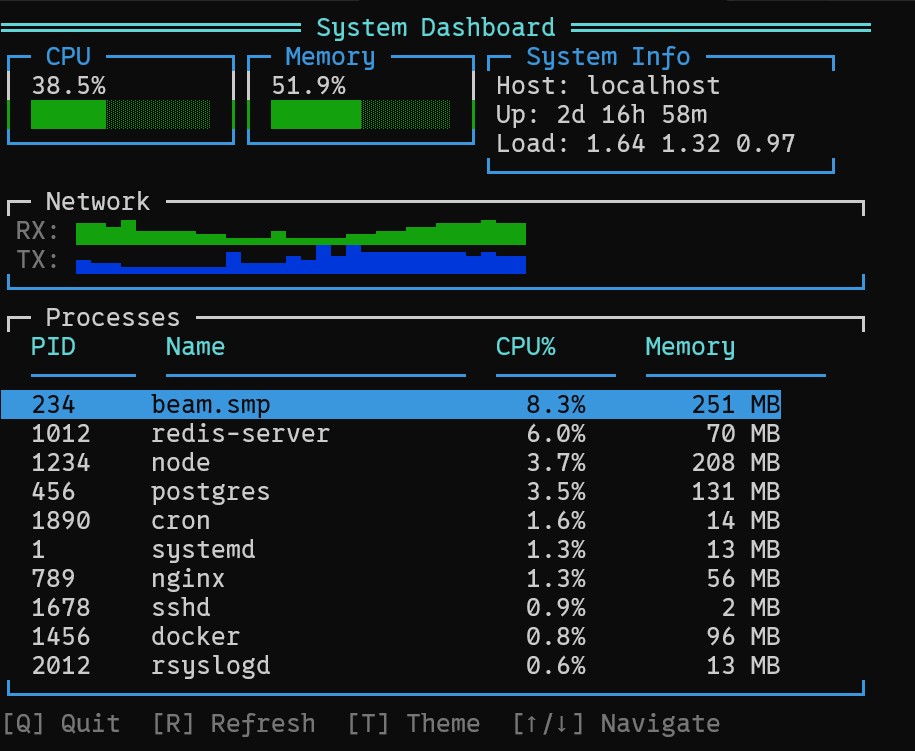

Blue Theme Yellow Theme

Features

Elm Architecture - Predictable state management with init/update/view
Rich Widget Library - Gauges, tables, menus, charts, dialogs, and more
Efficient Rendering - Double-buffered differential updates at 60 FPS
Themable - True color RGB support (16 million colors)
Cross-Platform - Linux, macOS, Windows 10+ terminal support
OTP Integration - Supervision trees, fault tolerance, hot code reload

Installation

Add term_ui to your dependencies in mix.exs:

def deps do
  [
    {:term_ui, "~> 0.1.0"}
  ]
end

Quick Start

defmodule Counter do
  use TermUI.Elm

  alias TermUI.Event
  alias TermUI.Renderer.Style

  def init(_opts), do: %{count: 0}

  def event_to_msg(%Event.Key{key: :up}, _state), do: {:msg, :increment}
  def event_to_msg(%Event.Key{key: :down}, _state), do: {:msg, :decrement}
  def event_to_msg(%Event.Key{key: "q"}, _state), do: {:msg, :quit}
  def event_to_msg(_, _), do: :ignore

  def update(:increment, state), do: {%{state | count: state.count + 1}, []}
  def update(:decrement, state), do: {%{state | count: state.count - 1}, []}
  def update(:quit, state), do: {state, [:quit]}

  def view(state) do
    stack(:vertical, [
      text("Counter Example", Style.new(fg: :cyan, attrs: [:bold])),
      text("", nil),
      text("Count: #{state.count}", nil),
      text("", nil),
      text("↑/↓ to change, Q to quit", Style.new(fg: :bright_black))
    ])
  end
end

# Run the application
TermUI.Runtime.run(root: Counter)

Documentation

User Guides

Guide	Description
Overview	Introduction to TermUI concepts
Getting Started	First steps and setup
Elm Architecture	Understanding init/update/view
Events	Handling keyboard and mouse input
Styling	Colors, attributes, and themes
Layout	Arranging components on screen
Widgets	Using built-in widgets
Terminal	Terminal capabilities and modes
Commands	Side effects and async operations

Developer Guides

Guide	Description
Architecture Overview	System layers and design
Runtime Internals	GenServer event loop and state
Rendering Pipeline	View to terminal output stages
Event System	Input parsing and dispatch
Buffer Management	ETS double buffering
Terminal Layer	Raw mode and ANSI sequences
Elm Implementation	Elm Architecture for OTP
Creating Widgets	How to build and contribute widgets
Testing Framework	Component and widget testing

Examples

The examples/ directory contains standalone applications demonstrating each widget:

Example	Description
dashboard	System monitoring dashboard with multiple widgets
gauge	Progress bars and percentage indicators
sparkline	Inline data visualization
bar_chart	Horizontal and vertical bar charts
line_chart	Braille-based line charts
table	Scrollable data tables with selection
menu	Nested menus with keyboard navigation
tabs	Tab-based navigation
dialog	Modal dialogs with buttons
viewport	Scrollable content areas
canvas	Free-form drawing with box/braille characters

# Run any example
cd examples/dashboard
mix deps.get
mix run run.exs

Requirements

Elixir 1.15+
OTP 28+ (required for native raw terminal mode)
Terminal with Unicode support

License

MIT License - see LICENSE for details.
