syslog

A Syslog-based logging framework and/or OTP logger handler for Erlang. This project is inspired by the great work put in the two projects sasl_syslog and lager. In fact syslog tries to combine both approaches. In a nutshell syslog can be seen as a lightweight version of the lager logging framework supporting only a fully compliant, Erlang-only Syslog backend allowing remote logging.

The main difference between sasl_syslog and syslog is that sasl_syslog does only provide logging of error_logger reports. However, the error_logger is known for its bad memory consumption behaviour under heavy load (due to its asynchronous logging mechanism). Additionally, syslog provides an optional RFC 3164 (BSD Syslog) compliant protocol backend which is the only standard supported by old versions of syslog-ng and rsyslog.

Compared to lager, syslog has a very limited set of backends. As its name implies syslog is specialized in delivering its messages using Syslog only, there is no file or console backend, no custom-written and configurable log rotation, no line formatting and no tracing support. However, syslog does not rely on port drivers or NIFs to implement the Syslog protocol and it includes measures to enhance the overall robustness of a node, e.g. load distribution, back-pressure mechanisms, throughput optimization, etc.

Features

• Log messages and standard error_logger reports formatted according to RFC 3164 (BSD Syslog) or RFC 5424 (Syslog Protocol) without the need for drivers, ports or NIFs.
• Support for sending log message metadata as RFC 5424 STRUCTURED-DATA.
• System independent logging to local or remote facilities using one of the following transports:
  • UDP (RFC 3164 and RFC 5426)
  • TCP (Octet Counting according to RFC 6587)
  • TCP/TLS (RFC 5425)
• Robust event handlers - using supervised event handler subscription.
• Optionally independent error messages using a separate facility.
• Get the well-known SASL event format for supervisor and crash reports.
• Configurable verbosity of SASL printing format (printing depth is also configurable).
• Load distribution between all concurrently logging processes by moving the message formatting into the calling process(es). Additionally uses binaries to minimize message copying and thus enhance performance.
• Proper OTP-21 support using the new logger' framework. * Built-inlagerbackend to bridge between both frameworks. ## Configuration Thesyslogapplication already comes with sensible defaults (except for the facilities used and the destination host). However, many things can be customized if desired. These are the advanced configuration options that are available and can be configured in the application environment: *{protocol, rfc3164 | rfc5424 |

          {rfc3164 | rfc5424, tcp | udp} |
          {rfc3164 | rfc5424, udp, [gen_udp:option()]} |
          {rfc3164 | rfc5424, tcp, [gen_tcp:option()]} |
          {rfc5424, tls, [ssl:connect_option()]}}`

  Specifies which protocol/transport standard should be used to format and send outgoing Syslog packets. Please note that empty/default TLS/SSL options are currently not supported. Default formatting is rfc3164 and the default transport is udp.
  • {use_rfc5424_bom, boolean()}
  Specifies whether the RFC5424 protocol backend should include the UTF-8 BOM in the message part of a Syslog packet. Default is false.
  • {dest_host, inet:ip_address() | inet:hostname()}
  Specifies the host to which Syslog packets will be sent. Default is {127, 0, 0, 1}.
  • {dest_port, inet:port_number()}
  Specifies the port to which Syslog packets will be sent. Default is 514.
  • {facility, syslog:facility()}
  Specifies the facility Syslog packets will be sent with. Default is daemon.
  • {crash_facility, syslog:facility()}
  Specifies the facility Syslog packets with severity crash, will be sent with. It replaces the previous error_facility property. This accompanies a change in behaviour. Starting with release 2.0.0 error messages will also be sent with facility. Only crash and supervisor reports will be sent to this (maybe) separate facility. If the values of the properties facility and crash_facility differ a short one-line summary will additionally be sent to facility. Default is daemon.
  • {no_progress, boolean()}
  This flag can be used to completely omit progress reports from the log output. So if you you don't care when a new process is started, set this flag to true. Default is false.
  • {app_name | appname, atom() | string() | binary()}
  Configures the value reported in the APP-NAME field of Syslog messages. If not set (the default), the name part of the node name will be used. If the node is not alive (not running in distributed mode) the string beam will be used.
  • {appname_from_metadata, atom()}
  Configures a key that is used to lookup an alternative APP-NAME from log event metadata (applies to the syslog's lager backend as well as to the OTP-21 logger handler). E.g. if this configuration is set to application and a log message has the mapping application => sasl in its metadata, the Syslog APP-NAME field will have the value sasl. If there is no mapping or this option is not set (which is the default) the rules described in the appname configuration apply.
  • {log_level, syslog:severity()}
  Configures the minimal log level. All messages with a severity value smaller then the configured level will be discarded. Default is debug (discard nothing).
  • {async, boolean()}
  Specifies whether log message offloading into the syslog_logger server is done synchronously or asynchronously. It is highly recommended to leave this at its default value false because asynchronous delivery is really dangerous. A simple log burst of a few thousand processes may be enough to take your node down (due to out-of-memory).
  • {timeout, pos_integer()}
  Specifies an upper bound in milliseconds a single process gets blocked in a log call (only if {async, false}). This is useful if your application has performance restrictions (under high load) and you are willing to sacrifice safety for this reason. It's still safer to set this to a lower value than completely switching to {async, true}. Default is 1000ms.
  • {multiline_mode, boolean()}
  Specifies whether syslog will send messages potentially containing multiline strings. Please be aware, that many Syslog servers will not be able to handle multiline messages well, e.g. will insert garbage characters for a newline character. Default is false.
  • {hostname_transform, none | short | long}
  Specifies how the hostname obtained from node() will be transformed for use as the hostname in messages. If the setting is none the value will be used as-is, if the setting is short any domain part of the name will be removed, and if the setting is long then syslog will attempt to fully qualify the name if no domain part is present. If the hostname obtained from node() is an IP address then no transformation is applied. If the node is not alive then the result of inet:gethostname will be used in place of node(). Note that RFC 3164 requires that the domain is not included in the hostname, and will remove the domain part from the resulting hostname. Default is long.

  Structured Data

  syslog is capable of sending STRUCTURED-DATA. Please note that this will require the rfc5424 formatting. STRUCTURED-DATA can be sent using the syslog:msg/5 function. This function allows passing a list of structured data elements that will be formatted and sent to the remote receiver. However, no content checking will be done. If there's unescaped or unallowed content in the provided structured data elements invalid Syslog messages will be sent.Another useful feature of syslog is the optional ability to store the metadata from a logger or lager log event/message into the STRUCTURED-DATA part of an RFC 5424 message. A structured data mapping has the form of a 2-tuple, e.g.

  {"sdata_id", [application, pid]}

  where sdata_id is being used as the STRUCTURED-DATA id and the second element being a list of atoms corresponding to the metadata keys whose values you want to pack. Only metadata matching the configured keys will be included into the STRUCTURED-DATA. If metadata does not contain a configured key, the key will be skipped. Please turn to the respective integration section to learn how to define structured data mappings.

  OTP-21 Logger Integration

  The syslog application uses the recommended way to integrate with the OTP-21 logger by utilizing the logger:add_handlers/1 function on application startup. This enables user to configure the integration through the sys.config of their release. By default, syslog will add a single logger handler with the id syslog.To use syslog as the one (and only) default handler in your release you'll need something like the following in your sys.config:

  [
  {kernel, [{logger, [{handler, default, undefined}]}]},
  {syslog, [{logger, [{handler, default, syslog_logger_h, #{}}]}]}
  ]

  However, keep in mind that it is not necessary to make syslog your default/primary log handler. It can also only be an additional handler.Similar to the lager backend, the logger handler is capable of conversion of metadata to structured data, e.g. if you want to include the metadata mappings for the keys application and pid (if available) as structured data in log messages you could configure the handlers like so:

  {syslog,
  [
  {logger,
   [
    {handler,
     syslog,
     syslog_logger_h,
     #{config => #{structured_data => [{"sdata_id", [application, pid]}]}}}
   ]}
  ]}

  Of course it is allowed to configure multiple structured data mappings, by default no metadata is packed as structured data.Additional handler configuration may be passed using the handler argument map like it would be done with other logger handlers. However, progress report filtering is strictly controlled by the syslog application environment and filtering (discarding) of remote log events is always enabled.Finally, to completely disable the logger integration (similar to setting syslog_error_logger to false in pre-OTP-21 releases) you'll have to configure an empty handler list:

  {syslog, [{logger, []}]}

  Error Logger Integration

  The following configuration options are related to the error_logger handler/integration. If there is no error_logger available (e.g. OTP-21 or syslog_error_logger =:= false), these configurations have no effect.
  • {syslog_error_logger, boolean()}
  Specifies whether syslog will handle messages from the error_logger. Default is true. Note: This will not start the error_logger in OTP-21.
  • {msg_queue_limit, Limit :: pos_integer() | infinity}
  Specifies a limit for the number of entries allowed in the error_logger message queue. If the message queue exceeds this limit syslog will drop the events exceeding the limit. Default is infinity.
  • {drop_percentage, Percentage :: 1..100}
  Specifies the number of messages that will be dropped (additionally), if the error_logger message queue exceeds the configured msg_queue_limit. The drop_percentage is given as percentage (of the msg_queue_limit). E.g. if drop_percentage is 10 (the default), msg_queue_limit is 100 and the current length of the error_logger message queue is 120, then 20 + 10 messages will be dropped to give the syslog_error_h handler some air to catch up.
  • {verbose, true | {false, Depth :: pos_integer()}}
  Configures which pretty printing mode to use when formatting error_logger reports (that is progress reports, not format messages). If verbose is true the ~p format character will be used when formatting terms. This will likely result in a lot of multiline strings. If set to {false, Depth} the ~P format character is used along with the specified printing depth. Default is true.The syslog application will disable the standard error_logger TTY output on application startup. This has nothing to do with the standard SASL logging. It only disables non-SASL logging via, for example error_logger:info_msg/1,2. This kind of standard logging can be re-enabled at any time using the following:

  error_logger:tty(true).

  This behaviour can also be configured in the application environment. If you don't want syslog to mess with your TTY settings use {disable_tty, false}.The syslog application will not touch the standard SASL report handlers attached to the error_logger when SASL starts. However, having SASL progress reports on TTY can be quite annoying when trying to use the shell. The correct way to disable this output is to configure the SASL application in the sys.config of a release, for example the following line will instruct SASL not to attach any TTY handlers to the error_logger:

  {sasl, [{sasl_error_logger, false}]}

  Lager Integration

  The syslog application comes with a built-in, optional backend for lager. This is especially useful if your release has dependencies that require lager although you wish to forward logging using syslog only. To forward lager logging into syslog you can use something like the following in your sys.config:

  {lager, [{handlers, [{syslog_lager_backend, []}]}]}

  It is also possible to explicitly specify the logging level

  {lager, [{handlers, [{syslog_lager_backend, [info]}]}]}

  It will also handle custom formatters like other existing lager backends. And there are even more advanced features that may be configured, e.g.:

  {lager,
  [
  {handlers,
   [
    {syslog_lager_backend,
     [
      debug,                                 %% Log Level
      {"sdata_id", [application, pid]},      %% STRUCTURED-DATA mappings
      {lager_default_formatter, [message]},  %% Lager formatting
      true                                   %% Use application field from
                                             %% lager metadata for appname
     ]}
   ]}
  ]}

  If you don't want to forward any metadata as structured data or are using RFC 3164 then you can supply an empty tuple {}.

  Danger Zone

  If your application really needs fast asynchronous logging and you like to live dangerously, the syslog application should be configured with {async, true} and {msg_queue_limit, infinity}. This sets syslog into asynchronous delivery mode and all message queues are allowed to grow indefinitely.

  Usage

  Although, the syslog application will log everything that is logged using the standard error_logger (pre-OTP-21) API, this should not be used for ordinary application logging. For pre-OTP-21 release it is recommended to use the logging API provided by the syslog module. These functions are similar to the ones provided by the error_logger module and should feel familiar (see the *msg/1,2 functions) while providing overload protection for your application.For post-OTP-21 releases the recommended way of logging is (of course) to use the official logger API. Due to the logger handler abstraction design, syslog is able to provide overload protection for this function without the need for an additional, custom API.

  Performance

  Performance profiling has been made with a the benchmark script located in the benchmark subdirectory. The figures below show the results of best-of-five runs on an Intel(R) Core(TM) i7-4790 CPU running OTP 17.4.The benchmark simulates a hard burst by spawning N processes that each send log messages, using a specific logging framework, in a tight loop for 10000ms. All log messages will be delivered over UDP (faked remote Syslog) to a socket opened by the benchmark itself. The total duration is the time it took to spawn the processes, send the messages and the time it took to receive all sent messages at the socket that the benchmark process listens on. The benchmark has two profiles. The large profiles uses log messages with a size of ~840bytes and the small profile uses log messages with a size of ~40bytes.All frameworks are used in their default configuration with their native logging function (noterror_logger).To be able to compare lager with the other frameworks, the benchmark contains a very simple backend, that forwards log messages formatted with the lager_default_formatter using gen_udp, e.g. like syslog does it. The sasl_syslog application is left out of scope, simply because it crashes the Erlang VM on every run (due to its purely asynchronous logging).Now let's see the numbers.

  Small Profile

  For a relatively small number of senders, all frameworks have a pretty good throughput and the completion time is almost equal. While memory consumption is generally low, the lager application uses significant more memory. This is due to the dynamic switching between synchronous and asynchronous message delivery: When delivery starts in asynchronous mode many log messages pile up in the internal gen_event's message queue. When the framework finally switches to synchronous mode the event manager is busy sending out these messages while senders get blocked.<img src="https://cloud.githubusercontent.com/assets/404313/16836745/5af8562e-49bf-11e6-8ba0-89a99d1a73f5.png" alt="small benchmark" />Adding more processes to the party makes the above mentioned effect more dramatic. While log4erl and syslog perform quite well by evening the load on the internal event manager or server using synchronous logging, lager piles up a hugh amount of messages in its internal gen_event message queue. It takes the framework almost two minutes to process these messages.When looking at the memory usage it can be observed that lager's backend throttling (which was also used in syslog up to this version) is effectively useless to protect from bursts with small log messages. Switching is simply too slow and once messages begin to pile up, the node keeps being busy sending these messages. Additionally, senders may get blocked an indefinite amount of time (remember that gen_event:sync_notify/2 uses infinity for timeouts). During the test it could be observed that some senders were blocked over 50 seconds!

  Large Profile

  Numbers get interesting when large strings need to be formatted and copied around. log4erl as well as lager do the actual message formatting inside the internal event managers. Additionally, these frameworks pass around the unprocessed format string and its argument list.syslog on the other hand, is now able to score by offloading the formatting work into the logging processes and by exchanging binaries with the internal logging server.<img src="https://cloud.githubusercontent.com/assets/404313/16836747/5f04b848-49bf-11e6-9c28-603eb66036f4.png" alt="large benchmark" />Interestingly, the total duration is excellent for all frameworks. Most probably, copying the large terms makes the logging processes slow enough that lager's backend throttling can kick in and prevent the internal message queue from growing too much. However, it could be observed again that some senders were blocked over 10 seconds.

  History

  4.0.0

  • Add proper support for the new OTP 21 Logger API: syslog does now integrate as a proper logger handler and inherited some of the nice features known from the lager backend, e.g. structured data from metadata (#15)
  • Change the default value for the hostname_transform option to long. This is done to be compliant to RFC 5424 by default, even when short hostnames are used for Erlang distribution.
  • Allow using custom logger formatters when using the OTP 21 logger handler (thanks to @robinchew)
  • Fix progress report filtering when using the OTP 21 logger handler (thanks to @juise)
  • Fix millisecond time resolution when using the OTP 21 logger handler (#21, thanks to @juise)
  • Fix application of the default syslog formatter configuration (#22, thanks to @dmitrivereshchagin)
  • Fix a badmatch when formatting crash reports originated by `proc_lib' (#23, thanks to @dmitrivereshchagin)
• Honor the report_cb feature when using the OTP 21 logger handler

3.4.5

• Do not open sockets in active mode. This prevents a socket bind which in turn lets the socket listen for incoming traffic (thanks to @lukebakken)

3.4.4

• Allow message header customizations, e.g. APP-NAME and/or HOSTNAME (thanks to @GlenWalker)

3.4.3

• Add support for process ids formatted as strings in lager metadata (thanks to @hairyhum)
• Add basic support for OTP 21. This will make syslogwork with the new logger API. But be aware that this is only a hack involving the start of the legacy error_logger. If you want to use this, do not forget to set the kernel environment variable logger_sasl_compatible to true in your release. Unfortunately, the unit tests don't work with OTP 21. Proper support for OTP 21 will be a topic for version 4.
• Add support for hostnames as values for the dest_host configuration (thanks to @lukebakken)

3.4.2

• Fix unicode logging (using ~ts or ~tc)

3.4.1

• Fix compatibility to OTP 20.1

3.4.0

• Due to a bug, this release is not compatible with OTP 20.1, use release 3.4.1 instead.
• Allow certain configuration values to be set as string/binary. This especially applies to the dest_host and dest_port options, e.g. it is now possible to set addresses like "127.0.0.1" or "::1" as dest_host. (thanks to @ogolosovskiy)
• Support for optional multiline mode, which prevents syslog from splitting message strings at newline separators (thanks to @ogolosovskiy)

3.3.0

• Try to reopen the transport periodically on transport failures/errors (#11).
• Support for configurable conversion of lager metadata to STRUCTURED-DATA (thanks to @walrusVision)
• Support for custom formatters in the lager backend (thanks to @walrusVision)

3.2.0

• Add support for STRUCTURED-DATA (RFC 5424) using syslog:msg/5. This lead to a change of the internal formatter behaviour. Custom implementations of the syslog_logger behaviour must be adapted to these changes.
• Error logger robustness has been improved, by giving the error_logger messages precedence over messages sent via the API.
• The internal syslog_logger handles transport errors (gracefully). This way crashes are avoided which in turn relieve the error_logger when the system is under high load already.

3.1.0

• Allow configuration of custom protocol backend modules (thanks to @rich)
• Export/move date formatting code into syslog_lib (thanks to @rich)
• Make TTY settings configurable in the application environment
• Make error_logger integration configurable

3.0.0

• syslog is now available on hex.pm under the package name syslog_app (the name syslog is already assigned to another project)
• Make project compatible to rebar3
• Remove dynamic switching of log message delivery mode. Make mode explicitly configurable with the new async directive (which replaces the async_limit directive) and the syslog:set_log_mode/1 API.
• Add app_name configuration directive to allow configuration of the APP-NAME field value (thanks to @comtihon).
• Change severity of messages sent by error_logger:info_[msg|report]/1,2 and syslog:info_msg/1,2 from notice to informational (thanks to @comtihon).
• Add log_level configuration directive. With this configuration it is possible to discard messages with undesired severity values (thanks to @comtihon).
• Add optional lager backend to forward messages from lager to syslog.
• Further improvement of robustness, especially when many processes try to log concurrently by moving the message formatting away from the main event manager into the logging processes.

Version 2.0.1

• Fix event handler supervision. Due to a defective match pattern in syslog_monitor crashed handlers did not get re-added as expected/supposed.

Version 2.0.0

• Replace the property error_facility with crash_facility. Refer to the explanation of crash_facility above to learn more about this behaviour change.
• Performance improvements (e.g. binary as internal message format)

Version 1.0.0

• Provide discrete API for robust error_logger independent logging
• Automatic toggling of sync/async logging for better load protection (default)
• Various performance improvements (e.g. timestamps, process name resolution)
• Configurable verbosity of progress report logging
• Support for release upgrades

Version 0.0.9

• Supervised error_logger integration
• Message queue length based load protection
• RFC 3164 compliant backend (default)
• RFC 5424 compliant backend
• Support for local and remote facilities using UDP
• Separate facility for error messages (default off)
• Standard SASL event format for supervisor and crash reports

Supervision

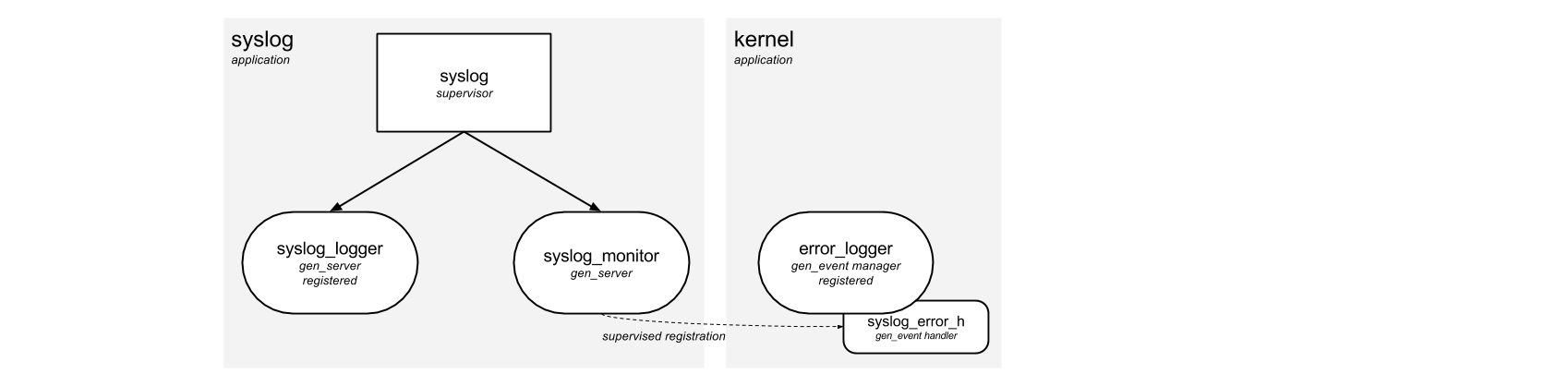

For the curious; the above illustration shows the very simple supervision hierarchy used by the syslog application. Please note that when OTP-21 is used the syslog_logger_h handler is monitored/supervised by the logger framework itself.
