Snapex7 is an Elixir wrapper for the Snap7 library. Snap7 i san open source, 32/64 bit, multi-platform Ethernet communication suite for interfacing natively with Siemens S7 PLCs.

Snapex7 is developer for snap7 1.4.2 and Elixir 1.8.1. It is tested on:
- Ubuntu
- MacOS
- Nerves
Note Currently only the Client implementation as synchronous of Snap7 is available. Future implementations can be found in our TODO section.

Installation

The package can be installed by adding snapex7 to your list of dependencies in mix.exs:

def deps do
  [
    {:snapex7, "~> 0.1.2"}
  ]
end

Fetch the dependency by running mix deps.get in your terminal.

Target Compatibility

Many hardware components equipped with an Ethernet port can communicate via the S7 protocol. Check compatibility with the component that you are using:

Snap7 full compatibility documentation can be found at pg.33 Snap7-refman.pdf

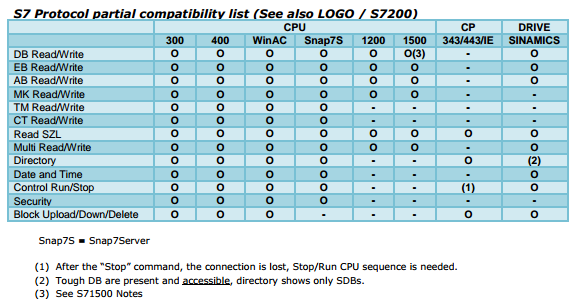

Here is a summary compatibility table from the documentation above:

Using Snapex7

Start a Snapex7.Client and connect it to the PLC's IP, where:

port: C port process
controlling_process: where events get sent
queued_messages: queued messages when in passive mode (WIP).
ip: the address of the server
rack: the rack of the server.
slot: the slot of the server.
is_active: active or passive mode (WIP).

iex> {:ok, pid} = Snapex7.Client.start_link()
iex> Snapex7.Client.connect_to(pid, ip: "192.168.0.1", rack: 0, slot: 1)

Connection functions

Connect to a S7 server. The following options are available:
- :active - (true or false) specifies whether data is received as messages or by calling "Data I/O functions".
- :ip - (string) PLC/Equipment IPV4 Address (e.g., "192.168.0.1")
- :rack - (int) PLC Rack number (0..7).
- :slot - (int) PLC Slot number (1..31).

iex> :ok = Snapex7.Client.connect_to(pid, ip: "192.168.0.1", rack: 0, slot: 1)

Disconnects gracefully the Client from the PLC.
```
iex> :ok = Snapex7.Client.disconnect(pid)
```

Get connected returns the connection status.

iex> {:ok, boolean} = Snapex7.Client.get_connected(pid)

Data IO functions

Reads a data area from a PLC. The following options are available:
- :area - (atom) Area Identifier. See @area_types.
- :db_number - (int) DataBase number, if area: :DB otherwise is ignored.
- :start - (int) An offset to start.
- :amount - (int) Amount of words to read/write.
- :word_len - (atom) Word size See @word_types.

  iex> {:ok, resp_binary} =
          Snapex7.Client.read_area(pid,
            area: :DB,
            word_len: :byte,
            start: 2,
            amount: 4,
            db_number: 1
          )

Write a data area from a PLC.. The same options of Snapex.Client.read_area are available here plus:
- :data - (atom) buffer to write.

  iex> :ok =
          Snapex7.Client.write_area(pid,
            area: :DB,
            word_len: :byte,
            start: 2,
            amount: 4,
            db_number: 1,
            data: <<0x42, 0xCB, 0x00, 0x00>>
          )

Lean functions of Snapex.Client.read_area and Snapex.Client.write_area for different types of ... are implemented:
- db_read & db_write: for PLC Database.
- ab_read & ab_write: for PLC process outputs.
- eb_read & eb_write: for PLC process inputs.
- mb_read & mb_write: for PLC merkers.
- tm_read & tm_write: for PLC timers.
- ct_read & ct_write: for PLC counters.

Write and Read different kinds of variables from a PLC in a single call. It can do so with it can read DB, inputs, outputs, Merkers, Timers and Counters.

iex> data1 = %{
  area: :DB,
  word_len: :byte,
  db_number: 1,
  start: 2,
  amount: 4,
  data: <<0x42, 0xCB, 0x20, 0x10>>
}

iex> data2 = %{
  area: :PA,
  word_len: :byte,
  db_number: 1,
  start: 0,
  amount: 1,
  data: <<0x0F>>
}
iex> r_data1 = %{
  area: :DB,
  word_len: :byte,
  db_number: 1,
  start: 2,
  amount: 4
}

iex> r_data2 = %{
  area: :PA,
  word_len: :byte,
  db_number: 1,
  start: 0,
  amount: 1
}

iex> :ok = Snapex7.Client.write_multi_vars(pid, data: [data1, data2])
iex> {:ok, [binary]} = Snapex7.Client.read_multi_vars(pid, data: [r_data1, r_data2])

Error format

When a response returns an error, it will have the following format:

iex> {:error, %{eiso: nil, es7: nil, etcp: 113}}

eiso: returns an atom with the ISO TCP error.
es7: returns an atom with the S7 protocol error.
etcp: returns an int TCP error or nil (Depends on your OS). Example: see TCP_error_info for Ubuntu OS.

See Snap7-refman.pdf pg.252 for further error info.

Types

Arguments definition for each particular memory block:

  @block_types [
    OB: 0x38,  # Organization block
    DB: 0x41,  # Data block
    SDB: 0x42, # System data block
    FC: 0x43,  # Function
    SFC: 0x44, # System function
    FB: 0x45,  # Functional block
    SFB: 0x46  # System functional block
  ]

  @connection_types [
    PG: 0x01,      # Programming console
    OP: 0x02,      # Siemens HMI panel
    S7_basic: 0x03 # Generic data transfer connection
  ]

  @area_types [
    PE: 0x81, # Process Inputs
    PA: 0x82, # Process Outputs
    MK: 0x83, # Merkers
    DB: 0x84, # DB
    CT: 0x1C, # Counters
    TM: 0x1D  # Timers
  ]

  @word_types [
    bit: 0x01,
    byte: 0x02,
    word: 0x04,
    d_word: 0x06,
    real: 0x08,
    counter: 0x1C,
    timer: 0x1D
  ]

Further documentation and examples

Snapex7 has further client functions implementation which can be found at Snapex7 Hexdocs.

Client function types in Hexdocs:
- Administrative
- Data IO
- Directory
- Block oriented
- Date/Time
- System Info
- PLC Control
- Security
- Low level
- Miscellaneous
Additional examples of usage can be found in the testing section of the project /test/s7_client_text/
- Note: Tests where writen with a local preconfigured PLC.
Snap7 source code and documentation can be found at Snap7-refman.pdf

Contributing to this Repo

Fork our repository on github.
Fix or add what is needed.
Commit to your repository
Issue a github pullrequest.

If you wish to clone this Repo use:

git clone --recursive git@github.com:valiot/snap7.git

License

See LICENSE.

TODO

Better handling c code
Server implementation
Partner implementation
Asynchronous Client implementation
