Hive

Efficient in-memory fleet state management.

Installation 💾

This library can be installed by adding hive to the list of dependencies in your mix.exs:

def deps do
  [{:hive, "~> 0.0.1"}]
end

Add :hive to extra_applications if necessary.

Usage 🚀

Once you have it running you can infleet, defleet, update positions, get h3 index for vehicles

alias Hive.Vehicle

# Infleet new vehicles
{:ok, _pid} = Hive.infleet("autonomous-vehicle-id")
{:ok, _pid} = Hive.infleet(%Vehicle{id: "autonomous-vehicle-id"})
{:ok, _pid} = Hive.infleet("normal-vehicle-id")
{:ok, _pid} = Hive.infleet(%Vehicle{id: "normal-vehicle-id"})

# Defleet vehicles
{:ok, _pid} = Hive.defleet("normal-vehicle-id")
{:ok, _pid} = Hive.defleet(%Vehicle{id: "normal-vehicle-id"})

Structs

Hive has two structs Vehicle and GeoPosition

%GeoPosition{
  latitude: float(),
  longitude: float(),
  accuracy: float(),
  altitude: float(),
  altitudeAccuracy: float(),
  heading: float(),
  speed: float()
}

%Vehicle{
  id: String.t(),
  vin: String.t() | nil,
  name: String.t() | nil,
  licensePlate: String.t() | nil,
  make: String.t() | nil,
  model: String.t() | nil,
  seatCount: String.t() | nil,
  color: String.t() | nil,
  available: boolean() | true,
  hasPassengers: boolean() | false,
  hasSDCCapability: boolean() | false,
  lastKnownPosition: GeoPosition.t() | nil,
  telemetry: list() | []
}

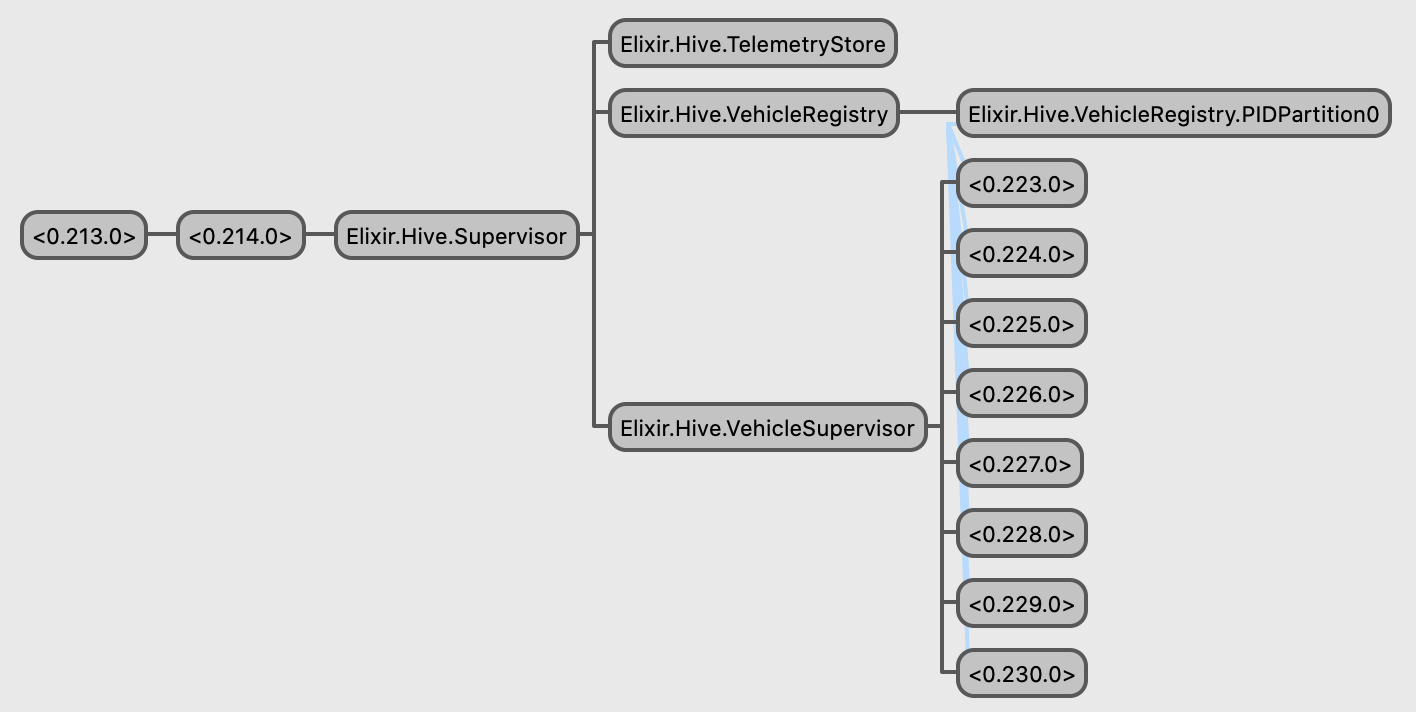

Supervision tree looks like

For more usage details please refer to https://hex.pm/packages/hive

H3 queries 🍪

H3 integration is done via https://github.com/helium/erlang-h3 and at the moment the following features are supported

# Get hexagon index for vehicle or GeoPosition
Hive.H3.index("vehicle-uuid")
Hive.H3.index(%GeoPosition{latitude: 48.8566, longitude: 2.3522})

# H3 index to GeoPosition
H3.index_to_geo("8928308280fffff")
H3.index_to_geo(617_700_169_958_293_503)

# Get geo boundary
H3.to_geo_boundary("8928308280fffff")
H3.to_geo_boundary(613_196_840_967_340_031)

# Get kRing
H3.k_ring("8928308280fffff")
H3.k_ring(613_196_840_967_340_031, 1)

For more see Hive.H3 module documentation.

The future 🌈

More features and integrations with H3 will be available in the future at the moment the main goal is to stabilize the API and release the first version with clear documentation how setup and use Hive.

TODO 🚧

• Fleet counters,
• Use ETS to store vehicle telemetry,
• Introduce typespecs,
• H3 implement
  • num_hexagons/1,
  • edge_length_meters/1,
  • edge_length_kilometers/1,
  • hex_area_m2/1,
  • hex_area_km2/1,
  • get_base_cell/1,
  • is_valid/1,
  • k_ring_distances/2,
  • max_k_ring_size/1,
  • compact/1,
  • uncompact/2,
  • indices_are_neighbors/2,
  • get_unidirectional_edge/2,
  • grid_distance/2
• Rest API to handle requests,
• User interface to manage and visualize fleet on the map,
• Possibility to use different router backends,
• Migrate to Horde to support cluster mode https://hex.pm/packages/horde.

Assets 💄

1. Project logo is from https://www.flaticon.com/free-icon/honeycomb_1598428

Enjoy!

✨ 🍰 ✨
