Evil Clock

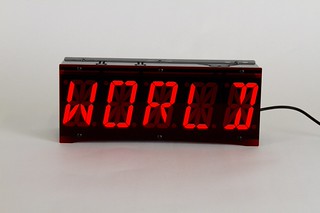

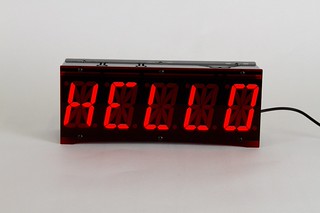

Elixir application for interfacing with Alpha Clock Five from Evil Mad Scientist Laboratories

Communicate with the evil clock’s microcontroller using a simple protocol over TTL serial. You’ll need a serial TTL-232 cable such as the FTDI Serial TTL-232 USB Cable from Adafruit.

Currently supports the following commands from firmware versions 1.0 and 2.0:

• ST: Set Time
• A0/Ax: ASCII Display
• MT: Mode Time

For more details on these commands, check out the serial protocol docs on the Evil Mad Scientist wiki: Firmware 1.0 or Firmware 2.0.

Usage

1. Ensure evil_clock is started before your application:

```elixir
def application do
  [applications: [:evil_clock]]
end
```

1. Configure settings in config/config.exs:

```elixir
config :evil_clock,
  port: "ttyUSB0",
  speed: 19200,
  firmware_version: 2,
  primary_clock: "A0",
  scroll_rate: 250
```

1. Start your application, and call the clock using functions on EvilClock:
   • display_ascii
   • set_time
   • set_local_time
   • mode_time

Installation

If available in Hex, the package can be installed as:

1. Add evil_clock to your list of dependencies in mix.exs:

```elixir
def deps do
  [{:evil_clock, "~> 0.1.0"}]
end
```

1. Ensure evil_clock is started before your application:

```elixir
def application do
  [applications: [:evil_clock]]
end
```

Copyright and License

Copyright (c) 2017 Jeff Smith

Evil Clock source code is licensed under the MIT License.
