Emerge

Write native GUI directly from Elixir using declarative API.

Installation

Add :emerge to your dependencies:

defp deps do
  [
    {:emerge, "~> 0.1.0"}
  ]
end

Then run:

mix deps.get

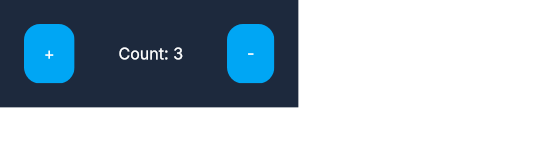

Quick example

defmodule MyApp.View.Counter do
  use Emerge
  use Solve.Lookup

  @impl Viewport
  def mount(opts), do: {:ok, Keyword.merge([title: "Counter"], opts)}

  @impl Viewport
  def render() do
    counter = solve(MyApp.State, :counter)

    row(
      [
        Background.color(color(:slate, 800)),
        Font.color(color(:white)),
        spacing(12),
        padding(12)
      ],
      [
        my_button([Event.on_press(event(counter, :increment))], text("+")),
        el([padding(10)], text("Count: #{counter.count}")),
        my_button([Event.on_press(event(counter, :decrement))], text("-"))
      ]
    )
  end

  # Reusable "component" is just plain elixir function
  def my_button(attrs, content) do
    Input.button(
      attrs ++ [
        padding(10),
        Background.color(color(:sky, 500)),
        Border.rounded(8)
      ],
      content
    )
  end

  @impl Solve.Lookup
  def handle_solve_updated(_updated, state), do: {:ok, Viewport.rerender(state)}
end

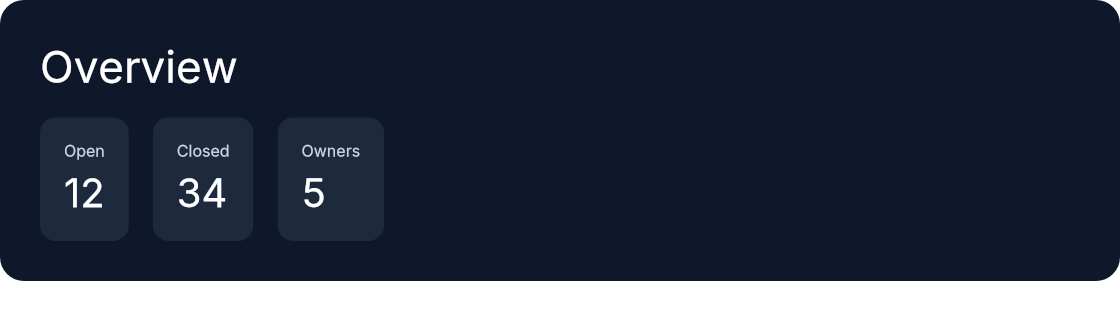

Easy reuse

Reuse in Emerge is just Elixir. Build data, map over it, and extract helpers that return UI trees.

defmodule MyApp.UI do
  use Emerge.UI

  def overview do
    column(
      [
        width(fill()),
        padding(20),
        spacing(12),
        Background.color(color(:slate, 900)),
        Border.rounded(12)
      ],
      [
        el([Font.size(22), Font.color(color(:white))], text("Overview")),
        row([spacing(12)], Enum.map(summary_stats(), &stat_card/1))
      ]
    )
  end

  defp summary_stats do
    [
      {"Open", "12"},
      {"Closed", "34"},
      {"Owners", "5"}
    ]
  end

  defp stat_card({label, value}) do
    el(
      [
        width(fill()),
        padding(12),
        Background.color(color(:slate, 800)),
        Border.rounded(8)
      ],
      column([spacing(4)], [
        el([Font.color(color(:slate, 300))], text(label)),
        el([Font.size(20), Font.color(color(:white))], text(value))
      ])
    )
  end
end

There is no separate component model to learn. If a function returns UI, you can compose it like any other Elixir function.

State management

Emerge is designed with Solve as a state management solution to keep complex UI apps sane. It keeps shared application state and rerender coordination outside the viewport process while Emerge stays focused on rendering.

Emerge does not depend on Solve. You can use another state management approach if it fits your app better.

Try it out

Try the standalone demo app in emerge_demo.

Features

• Build layout and styling in one declarative tree with el/2, row/2, column/2, and related helpers
• Reuse UI with ordinary Elixir functions, data transforms, and Enum
• Handle buttons, text input, keyboard, pointer events, and interactive states
• Render images, SVGs, backgrounds, borders, text, and font assets
• Use scroll containers, nearby overlays, paint-time transforms, and animation
• Run the same renderer on Wayland, DRM, and raster backends with high-DPI rendering and efficient tree updates

Backends

• Wayland for desktop Linux windows
• DRM for embedded, kiosk, and Nerves deployments
• Raster for offscreen rendering and tests (this backend doesn't work with viewport for now)

For runtime backend selection and multi-backend setup, see Set up a viewport.

Requirements

• Elixir 1.19+
• Linux (Wayland session or DRM for on-screen backends)
• Rust toolchain (if rustler precompiled doesn't cover your combination)

Documentation

API reference and tutorials are published on HexDocs.

Key guides:

• Set up a viewport
• Describe your UI
• Use assets
• Manage state

Run mix docs to build the full docs locally.

Attribution

Emerge's UI API is heavily inspired by elm-ui by Matthew Griffith.

Third-Party Assets

Bundled third-party asset notices are documented in THIRD_PARTY_ASSETS.md. Package/runtime-relevant notices are summarized in NOTICE.

Packaged/runtime-relevant asset groups:

• Inter default fonts in native/emerge_skia/src/fonts - SIL Open Font License 1.1
• Mocu DRM cursor SVGs in native/emerge_skia/src/backend/drm/cursors/mocu_black_right - CC0 1.0 Universal

If you redistribute Emerge inside an application or firmware image, include the applicable notice files.
