ElixirOpentui

A terminal UI framework for Elixir with a high-performance Zig NIF backend. Build rich, interactive terminal applications using an Elm-inspired init/handle_event/render architecture and a declarative View DSL.

This project is a port of OpenTUI to idiomatic Elixir. The Zig NIF backend uses OpenTUI's Zig implementation directly — the rope data structure, text buffer, editor view, grapheme handling, and frame buffer are all vendored from their codebase. Huge thanks to the OpenTUI team at Anomaly for building and open-sourcing such a solid foundation. This project wouldn't exist without their work.

What it looks like

defmodule Counter do
  alias ElixirOpentui.Color

  def init(_cols, _rows) do
    %{count: 0}
  end

  def handle_event(%{type: :key, key: "c", ctrl: true}, _state), do: :quit
  def handle_event(%{type: :key, key: :up}, state), do: {:cont, %{state | count: state.count + 1}}
  def handle_event(%{type: :key, key: :down}, state), do: {:cont, %{state | count: max(0, state.count - 1)}}
  def handle_event(_event, state), do: {:cont, state}

  def render(state) do
    import ElixirOpentui.View

    panel id: :main, title: "Counter", width: 30, height: 7,
          border: true, fg: Color.rgb(200, 200, 200), bg: Color.rgb(20, 20, 35) do
      text(content: "Count: #{state.count}", fg: Color.rgb(100, 220, 100), bg: Color.rgb(20, 20, 35))
      text(content: "")
      text(content: "Up/Down to change", fg: Color.rgb(100, 100, 100), bg: Color.rgb(20, 20, 35))
      text(content: "Ctrl+C to quit", fg: Color.rgb(100, 100, 100), bg: Color.rgb(20, 20, 35))
    end
  end

  def focused_id(_state), do: nil
end

ElixirOpentui.Demo.DemoRunner.run(Counter)

Save that as counter.exs and run it with mix run counter.exs. You get a bordered panel with a live counter you can increment and decrement with the arrow keys.

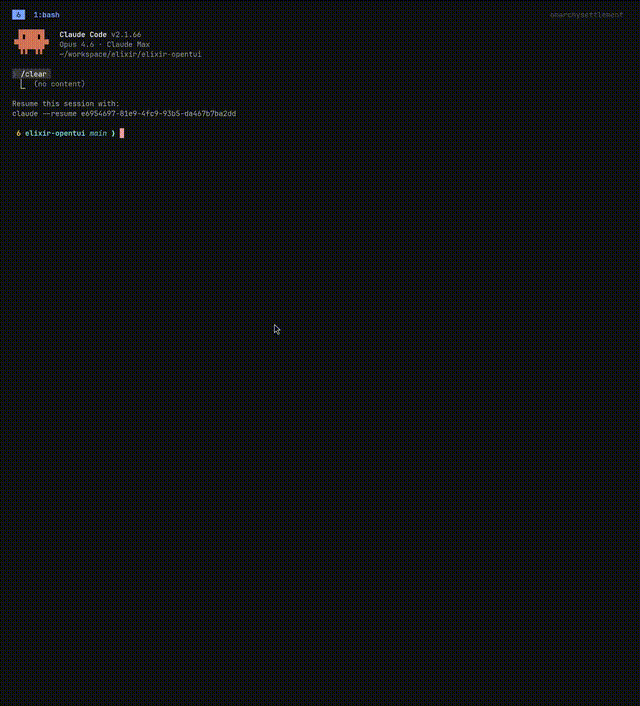

A demo pong game by using ElixirOpentui Canvas (claude build)

Features

• 15+ widgets — text input, select, checkbox, scroll box, tabs, textarea, code viewer, markdown renderer, diff viewer, and more
• Flexbox-inspired layout — rows, columns, padding, margin, grow/shrink, alignment, percentage sizing
• Zig NIF rendering backend — double-buffered, diff-based terminal output for minimal flicker
• Pure Elixir fallback — everything works without the NIF too, just slower
• Animation system — timeline-based with 25 easing functions, ~30 FPS live mode
• Syntax highlighting — via Makeup, supports Elixir and TypeScript
• Markdown rendering — via Earmark, headings, lists, code blocks, blockquotes
• Full input handling — keyboard, mouse (SGR 1006), paste, Kitty keyboard protocol
• Terminal capability detection — progressive enhancement based on what the terminal supports

Installation

Add elixir_opentui to your dependencies in mix.exs:

def deps do
  [
    {:elixir_opentui, "~> 0.1.0"}
  ]
end

Then fetch and set up:

mix deps.get
mix zig.get    # downloads the Zig toolchain (required for NIF compilation)
mix compile

Requirements

• Elixir ~> 1.19
• OTP 28+ — uses :shell.start_interactive/1 for raw terminal mode
• A terminal emulator that supports ANSI escape sequences (basically all of them)

Optional dependencies

These are optional and only needed if you use the corresponding widgets:

{:makeup, "~> 1.2", optional: true}          # for Code widget syntax highlighting
{:makeup_elixir, "~> 1.0", optional: true}    # Elixir syntax highlighting
{:earmark, "~> 1.4", optional: true}          # for Markdown widget

How it works

Every app follows the same pattern: init sets up your state, handle_event responds to keyboard/mouse input by returning updated state (or :quit), and render builds a declarative UI tree using the View DSL. The framework diffs the output and only redraws what changed.

Under the hood, the rendering pipeline goes: element tree → flexbox layout → paint to cell buffer → diff against previous frame → emit minimal ANSI escape sequences. The Zig NIF handles the buffer and diff operations for speed, but there's a pure Elixir fallback if you'd rather not compile native code.

Demos

The demo/ directory has 17 runnable examples. Here are some highlights:

mix run demo/widget_gallery.exs   # all widgets in one view
mix run demo/text_area_demo.exs   # multi-line editor with undo/redo
mix run demo/code_demo.exs        # syntax-highlighted code viewer
mix run demo/markdown_demo.exs    # markdown renderer
mix run demo/diff_demo.exs        # unified and split diff views
mix run demo/animation_demo.exs   # timeline-based animations
mix run demo/breakout.exs         # breakout game
mix run demo/space_dodge.exs      # space dodge game

All demos use Ctrl+C to exit.

Available widgets

View DSL

The View DSL gives you macros for building UI trees:

import ElixirOpentui.View
import ElixirOpentui.Color

box direction: :row, gap: 2 do
  panel id: :left, title: "Left", width: 20, border: true do
    text(content: "Hello", fg: green())
  end

  panel id: :right, title: "Right", width: 20, border: true do
    checkbox(id: :toggle, checked: true, label: "Dark mode")
  end
end

Styling

Style properties cover layout, colors, borders, and text attributes:

box width: {:percent, 50},
    height: 10,
    padding: {1, 2, 1, 2},
    bg: Color.rgb(30, 30, 50),
    fg: Color.white(),
    border: true,
    border_style: :rounded,
    border_title: "My Panel" do
  text(content: "Styled content", bold: true, fg: Color.rgb(100, 220, 100))
end

Layout: width, height, min_width, max_width, flex_grow, flex_shrink, flex_basis, padding, margin, gap, direction (:row/:column), justify_content, align_items, align_self

Visual: fg, bg, opacity, bold, italic, underline, dim, inverse, border, border_style (:single/:double/:rounded/:heavy)

License

MIT
