Typed, supervised dataflow on the BEAM.

You describe a graph of processing stages as TOML; bloccs type-checks the wiring, enforces what each stage is allowed to do, and compiles it to a Broadway/GenStage supervision tree.

⚠️ Experimental — early and moving fast. The public API and the manifest format may change between releases, and bloccs isn't durable (put Oban or a broker at the edges for work that must survive restarts). Great for exploring and prototyping — pin a version and check the CHANGELOG before you upgrade.

Why bloccs?

Plenty of backend work is a graph of stages: ingest → validate → enrich → branch → persist/notify. On the BEAM you'd build that today by hand-wiring a few Broadway pipelines and a supervisor. That works, but nothing checks it:

• the connections between stages are untyped — stage A emits a map, stage B expects a different shape, and you find out in production;
• the side effects are unconstrained — any stage can call any host or table; nothing says enrich is only allowed to GET the enrichment service;
• retry / timeout / idempotency / back-pressure get re-implemented, slightly differently, in every pipeline;
• the topology lives in your head (and a supervisor module), not in a reviewable artifact;
• and once an LLM is writing the pipelines, you're auditing sprawling generated glue line by line — the shape of the system buried in code, with a wrong wiring or an unscoped side effect easy to miss in the diff.

bloccs makes the graph a declared, checked thing. You write the topology and the per-stage contracts as TOML; bloccs rejects a graph whose edges don't type-match before it runs, refuses an effect a node didn't declare, and generates the Broadway supervision tree — as real, debuggable .ex source — with the retry / timeout / idempotency / back-pressure already wired in. The artifact you review is the manifest, not the generated glue — which is what keeps a human in control when an LLM is doing the typing (see Legible to humans and LLMs).

Why not just write Elixir, or use Broadway directly? You can — and for a single pipeline you should (see How it compares). bloccs earns its keep once you have a graph and want the edges (schemas), the effects (capabilities), and the per-node policy declared and machine-checked rather than maintained by hand. The next section shows the two checks that aren't possible with plain Broadway.

Install

def deps do
  [{:bloccs, "~> 0.1"}]
end

Then mix deps.get. The effect adapters are bring-your-own and opt-in — add {:req, "~> 0.5"} for the real HTTP backend and point the DB backend at your Ecto repo only if you use them (see guides/effect-adapters.md).

Quickstart

With the dep in place, the loop is validate → compile → run over a network manifest. Point the tasks at a .bloccs network — write one (see guides/concepts.md and the manifest reference) or copy networks/ + nodes/ from examples/tour:

mix bloccs.validate networks/hello.bloccs
mix bloccs.compile  networks/hello.bloccs
mix bloccs.run      networks/hello.bloccs --message '{"name": "ada"}'

mix bloccs.compile emits real, debuggable .ex source under _build/<env>/bloccs_generated/<network>/ — diff it in a PR. For a step-by-step walkthrough that writes a node by hand, see guides/getting-started.md.

Start a new project from scratch

To begin from a runnable example instead, install the bloccs.new generator as a Mix archive and scaffold a project — it wires the dep, a sample node and its schemas, and a one-node network:

mix archive.install hex bloccs   # makes `mix bloccs.new` available
mix bloccs.new my_flow
cd my_flow
mix deps.get
mix bloccs.run networks/hello.bloccs --message '{"name": "ada"}'

Typed edges and scoped effects

This is the part you can't get from hand-wired Elixir. Both examples below are real output from the tour example (examples/tour).

1. Mismatched edges are rejected at validation time.examples/tour/networks/pipeline_mismatch.bloccs wires an out-port carrying WordRequest@1 into an in-port that expects Definition@1. Validate it:

$ cd examples/tour
$ mix bloccs.validate networks/pipeline_mismatch.bloccs
✗ networks/pipeline_mismatch.bloccs
  - [[edges]] (networks/pipeline_mismatch.bloccs): edge accept.word → define.word
    schema mismatch: accept.word=WordRequest@1 but define.word=Definition@1

The network never starts. Plain Broadway has no contract between pipelines — this mismatch would surface as a FunctionClauseError (or worse, silently wrong data) at 3am.

2. Undeclared side effects are refused. A node may only touch the world through effects it declared in [effects]. define declares HTTP to exactly one host:

[effects]
http = { allow = ["dictionary.local"], methods = ["GET"] }

Call anything else and the capability struct refuses it at runtime:

# a host the node didn't allow:
bloccs effect denied: :http — host of http://evil.example/leak
                              not in declared allowlist ["dictionary.local"]

# an effect axis the node never declared at all:
bloccs effect denied: :http — axis not declared

And use Bloccs.Node warns you at compile time the moment the effect shell reaches for an undeclared axis:

warning: bloccs: effect :http used in effect_shell but not declared in
         [effects]. Declared: [].

Typed edges and capability-scoped effects are the two guarantees that make a bloccs graph safer than the same graph hand-wired.

The manifests

Two kinds of TOML manifest:

• Node manifests (.bloccs, one node per file) — the node's input/output ports with versioned schemas, the effects it's allowed to perform (HTTP / DB / Time / Random), the pure-core and effect-shell function refs, and retry / timeout / idempotency / buffer policy.
• Network manifests — topology: which nodes wire to which, supervision structure, concurrency per node, and which ports are exposed.

# nodes/enrich.bloccs
[node]
id = "enrich"
version = "0.1.0"
kind = "transform"

[ports.in]
valid = { schema = "RawEvent@1" }

[ports.out]
enriched = { schema = "EnrichedEvent@1" }

[effects]
http = { allow = ["enrichment.local"], methods = ["GET"] }

[contract]
pure_core    = "MyApp.Nodes.Enrich.transform/2"
effect_shell = "MyApp.Nodes.Enrich.execute/2"
retry        = { strategy = "exponential", max = 2, on = ["timeout"], base_ms = 50 }
timeout_ms   = 3000
idempotency  = { key = "id" }

Each node's implementation is split in two: a pure core (no IO, no clock, no randomness — easy to test, deterministic) and an effect shell that touches the world, and only through declared effects.

How it works

What the compiler emits from those manifests, and how each node behaves once it's running.

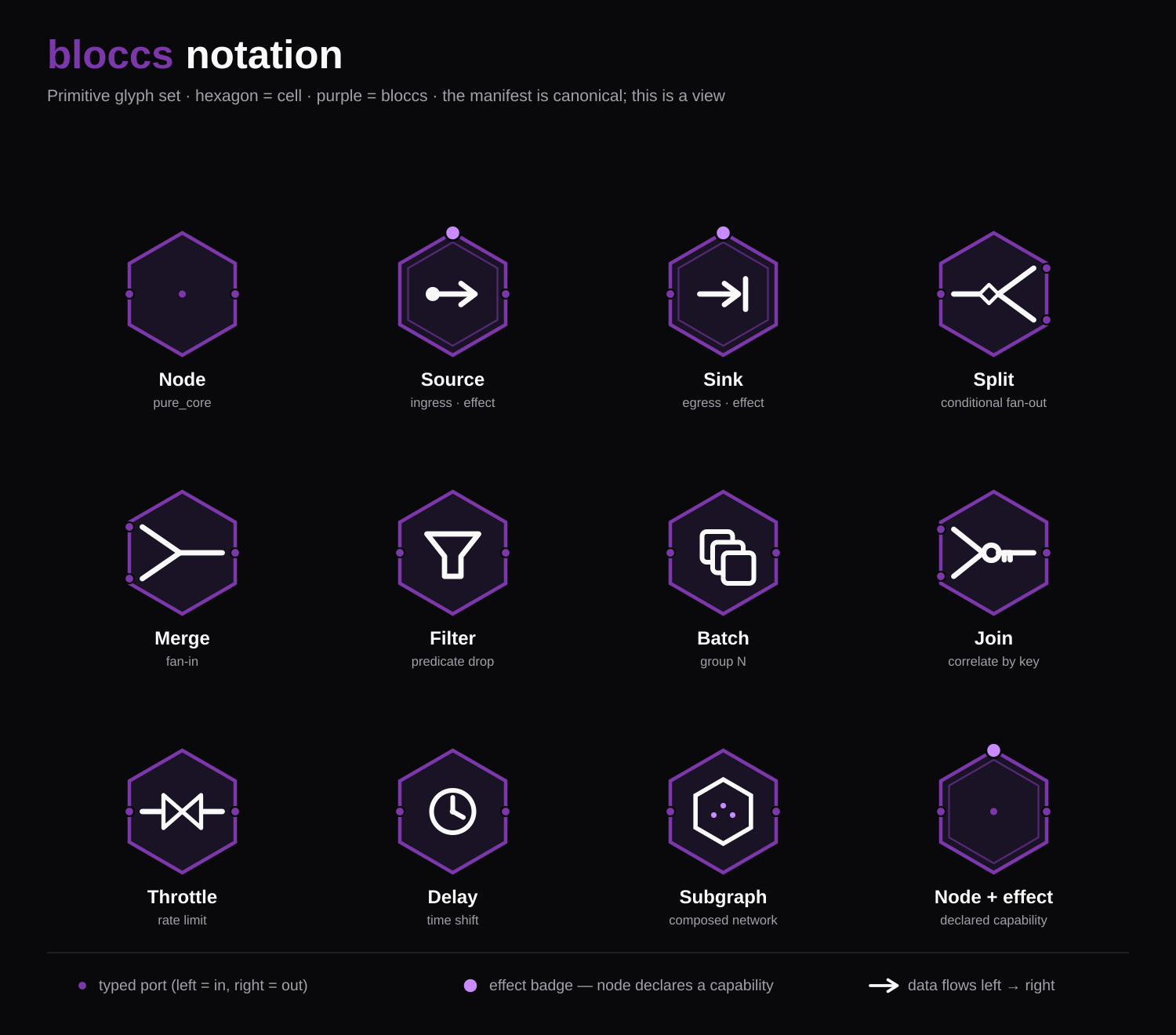

Flow primitives

A node's behavior is its ports + contract, not a fixed "type". From those, the common dataflow shapes fall out — most are just what the effect shell returns, the rest a small manifest block:

Conditional logic lives in node code (a returned port, a :drop), never in edge predicates — which keeps the topology declarative and machine-checkable. The primitives reference catalogues each one (glyph, what it does, how to declare it); see also guides/concepts.md and the manifest reference.

The generated runtime

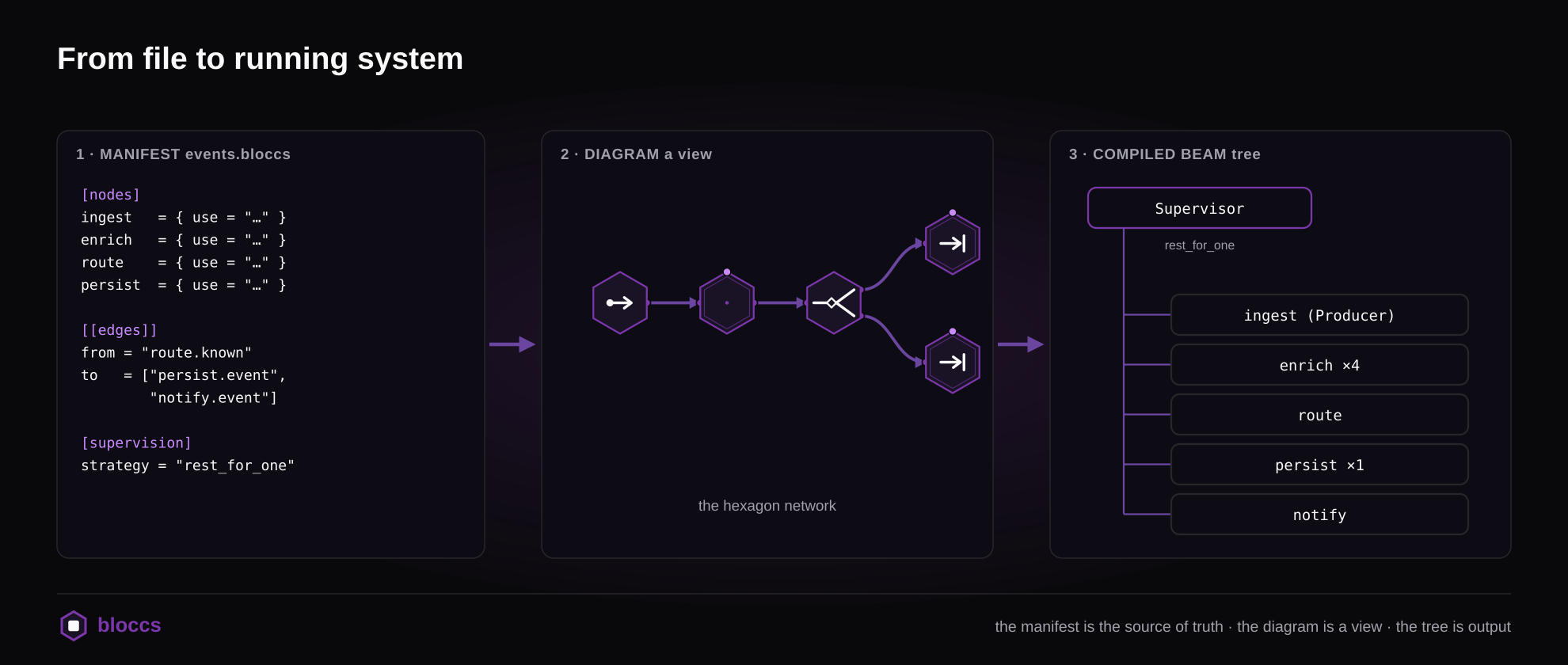

mix bloccs.compile reads the manifests and emits a Broadway-based supervision tree — one stage per node, a router for edges, a producer for each inbound port. Every declared contract is wired into that runtime, not just parsed:

• Retry — backed-off re-enqueue (constant / linear / exponential), matched against the failure reason; permanent failures (schema mismatch, capability denial) are never retried.
• Timeout — timeout_ms runs the node in a bounded task; overrun fails the message with :timeout (retriable).
• Idempotency — reserves the key in-flight (atomic), so concurrent first-deliveries can't both run; released on terminal failure.
• Back-pressure — a bounded buffer parks the producer's caller until a consumer drains, instead of dropping.
• Observability — :telemetry.span([:bloccs, :node], …) plus :emit, :retry, :skipped, and :dispatch_error events (see Bloccs.Telemetry). A failed downstream delivery is surfaced (telemetry + a failed message), never silently dropped.
• Subgraph composition — a [nodes] entry may use a network manifest; the parser flattens it into namespaced leaf nodes at parse time.

Effects: mock by default, real adapters opt-in

Nodes call a backend-agnostic facade (Bloccs.Effects.HTTP.post/3, DB.insert/3, …). The mock backends are the default (tests stay hermetic); the real ones are selected purely in config, with no node changes:

config :bloccs, :effect_backends,
  http: Bloccs.Effects.HTTP.Req,    # real HTTP via Req (add :req to your deps)
  db:   Bloccs.Effects.DB.Ecto      # real SQL via your Ecto repo

config :bloccs, Bloccs.Effects.DB.Ecto, repo: MyApp.Repo, returning: [:id]

bloccs forces neither req nor Ecto on you — both are bring-your-own. Write your own backend by implementing the Bloccs.Effects.HTTP / DB behaviour. See guides/effect-adapters.md. A runnable example hitting real HTTP + SQLite (zero external services) lives in examples/real_backend.

CLI (Mix tasks)

• mix bloccs.new <name> — scaffold a new project
• mix bloccs.validate <file> — schema / contract / DAG checks on a node or network
• mix bloccs.compile <network> — emit the Broadway supervision tree
• mix bloccs.run <network> --message <json> [--trace <out>] — start the tree, feed a message, optionally record a .bloccs-trace
• mix bloccs.coverage <network> [--message <json> | --trace <file>] — real structural coverage (every in-port, out-port, and edge) from a recorded run

Legible to humans and LLMs

A bloccs network is a small declarative artifact: the topology is a TOML file, and each node is a manifest plus two functions (a pure core and an effect shell). The thing you review stays small even when an assistant writes most of the implementation.

• You review the graph, not the glue. A change to the flow is a diff to a .bloccs file — which ports moved, which edge appeared — not a re-read of regenerated supervisor and pipeline code. The generated .ex is there to inspect when you want it, but the manifest is what you read.
• A change's blast radius is one node. Each node is a bounded unit: a manifest, a pure_core, an effect shell. An assistant can add or alter a node without reaching into the rest of the tree.
• The boundaries are machine-checked, so you don't have to take the code's word for it. A mis-wired edge is rejected at validation time; an undeclared host or table is refused. An LLM can move fast and still cannot connect mismatched stages or smuggle in an unscoped side effect — the compiler stops it before it runs.

So you can hand the repetitive parts to an assistant and stay in control of the shape of the system, instead of drowning in generated code you have to audit line by line.

Examples

A graded ladder under examples/ — see examples/README.md:

• examples/tour — core concepts one rung at a time (mix tour.hello · mix tour.pipeline · mix tour.branching), mock effects, zero setup.

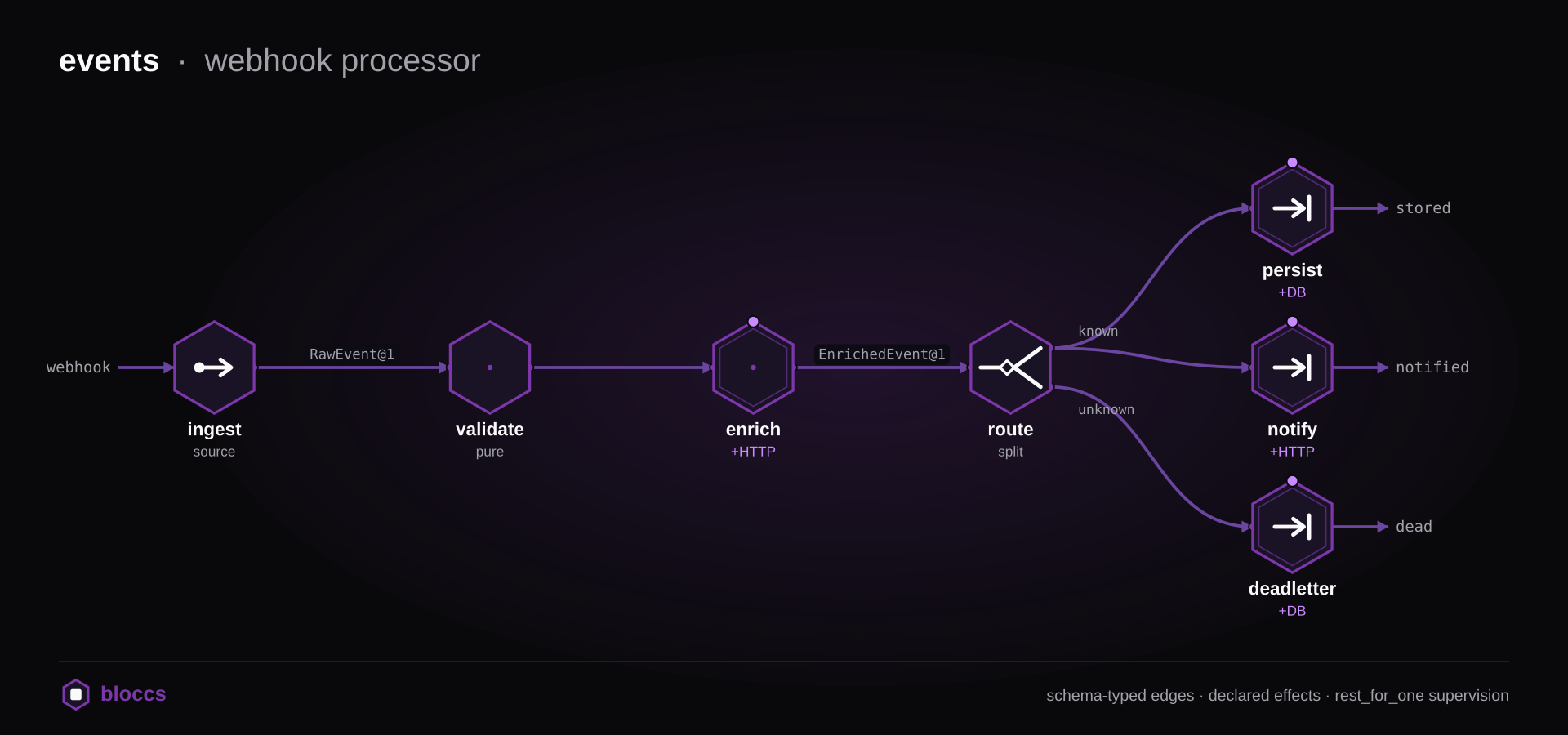

• examples/events — the flagship: a webhook/event processor showing typed edges, HTTP + DB effects, retry, timeout, idempotency, branching, fan-out, and coverage (the events.demo task).
• examples/real_backend — the same shape against real HTTP (Req) + SQLite (Ecto) (mix price_watch.demo).

How it compares

bloccs generates Broadway — it isn't a competitor to it. Reach for Broadway directly when you have a single pipeline; reach for bloccs when you have a graph of typed stages and want the edges (schemas), effects (capabilities), and per-node policy (retry / timeout / idempotency / back-pressure) declared and checked, with the topology as a reviewable artifact. It is not durable — for work that must survive restarts, put Oban or a broker at the edges. Full comparison against Broadway, Oban, Reactor, Temporal, LangGraph, and plain GenServers: guides/comparison.md.

Prior art

Flow-based programming on the BEAM isn't new. Anton Mishchuk's lineage — Flowex → ALF → Strom / Kraken — spent years establishing that the actor model and GenStage make the BEAM a natural home for FBP, and Kraken reached the same "graph-as-data + declarative adapters" idea bloccs builds on. bloccs owes that groundwork.

The difference is the guarantees, not the shape:

• Compile-time contracts. Edges are schema-checked and effects are capability-checked before the network runs; that lineage validates (or trusts) at runtime.
• Reviewable output. bloccs emits the Broadway supervision tree as real .ex source you can read and diff. ALF interprets a runtime DSL; Kraken compiles JSON to modules at runtime. A bloccs network is something you can git diff.
• A settled substrate. bloccs commits to Broadway; the lineage moved between GenStage and plain streams.

What bloccs is not: a runtime DSL (the manifest is compiled ahead of time, not interpreted), a data-ingestion pipeline (that's Broadway — which bloccs generates), a visual builder (the file is canonical; a canvas is a view), or durable (put Oban or a broker at the edges for work that must survive restarts).

License

Released under the MIT License.
